At the Controller you have the following option:

On / Off Switching the Plasma-Source ON or OFF
Plasma Control that the Plasma is ignited
Lost
Power Control the operation power from 10 – 99 Watt
Time Adjust the cleaning time

With the “Remote Softwre” it is addtionally possible to:

Security Warning Ask if the Column valve is closed
Trigger Mode Run an automatic cleaning process
Power change ignition power

Package „Scientific“

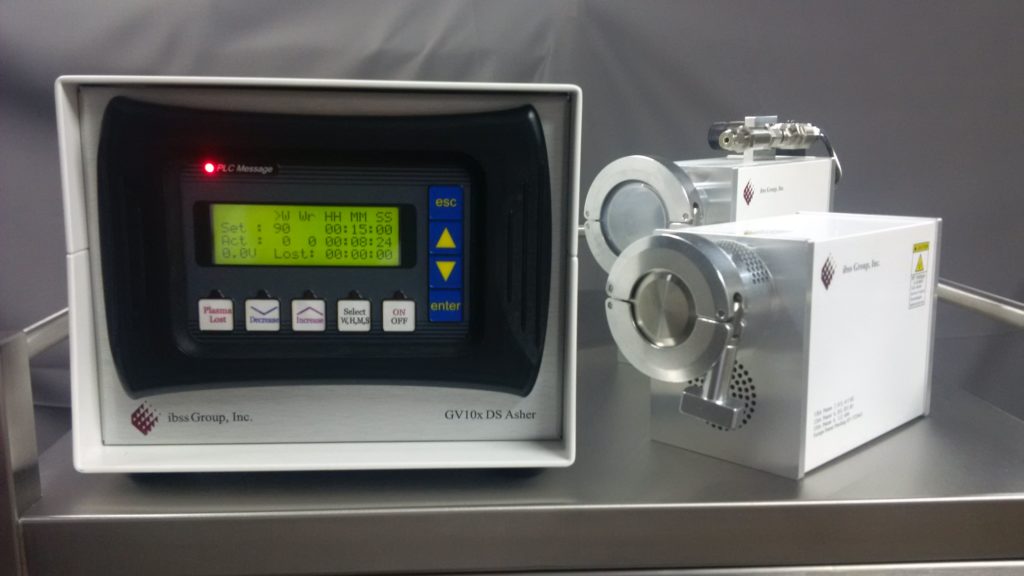

Bench Top Kontroller
– The controller could be placed on or behind the table

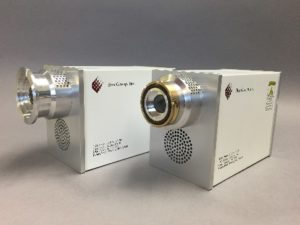

Plasma Source
– With KF, CF oder „Quick Switch“ flange
– „Quick Swicth“ is optional

Adapter – Flanch
– Individual for differnt systems
– Special flange could create extra costs

Remote Software V2

Micro – Pirani

The controller is installed at a 19“ Rack.

It could be installed at a standard rack or behind the system.

The controller needs only a minimum on space.

The “Remote Software“ is easy to operate and will be installed on one your computer.

All parameters could be adjusted and controlled at the software.

Pakage „Compact“

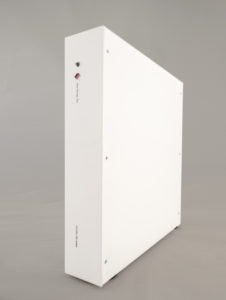

19“ Rack Controller
– For installtion at a standard rack or behind the table

Plasma Source
– With KF, CF oder „Quick Switch“ Flange
– „Quick Swicth“ is optional

Adapter – Flange
– Individual for your chamber
– Spezial flanges could create extra costs

Remote Software V2

Micro – Pirani

All – In – One Solution
The „All-In-One Solution“ completes the package’s from before.

GV10x incl. Controller (Compact)
The „Plasma-Source GV10x“ together with the „Controller“ are responsible for cleaning your sample without destroying your top surface.

Gentle Asher Chamber

Inside the “Gentle Asher Chamber” the samples gets cleaned before they get into the vacuum chamber

Vacuum – Pump

The dry pump ensures a clean vacuum so that your samples can be cleaned quickly and effectively.

Tablett

The control – software is installed on a tablet. The operation and monitoring takes place easily by the “Remote Control Software”.
